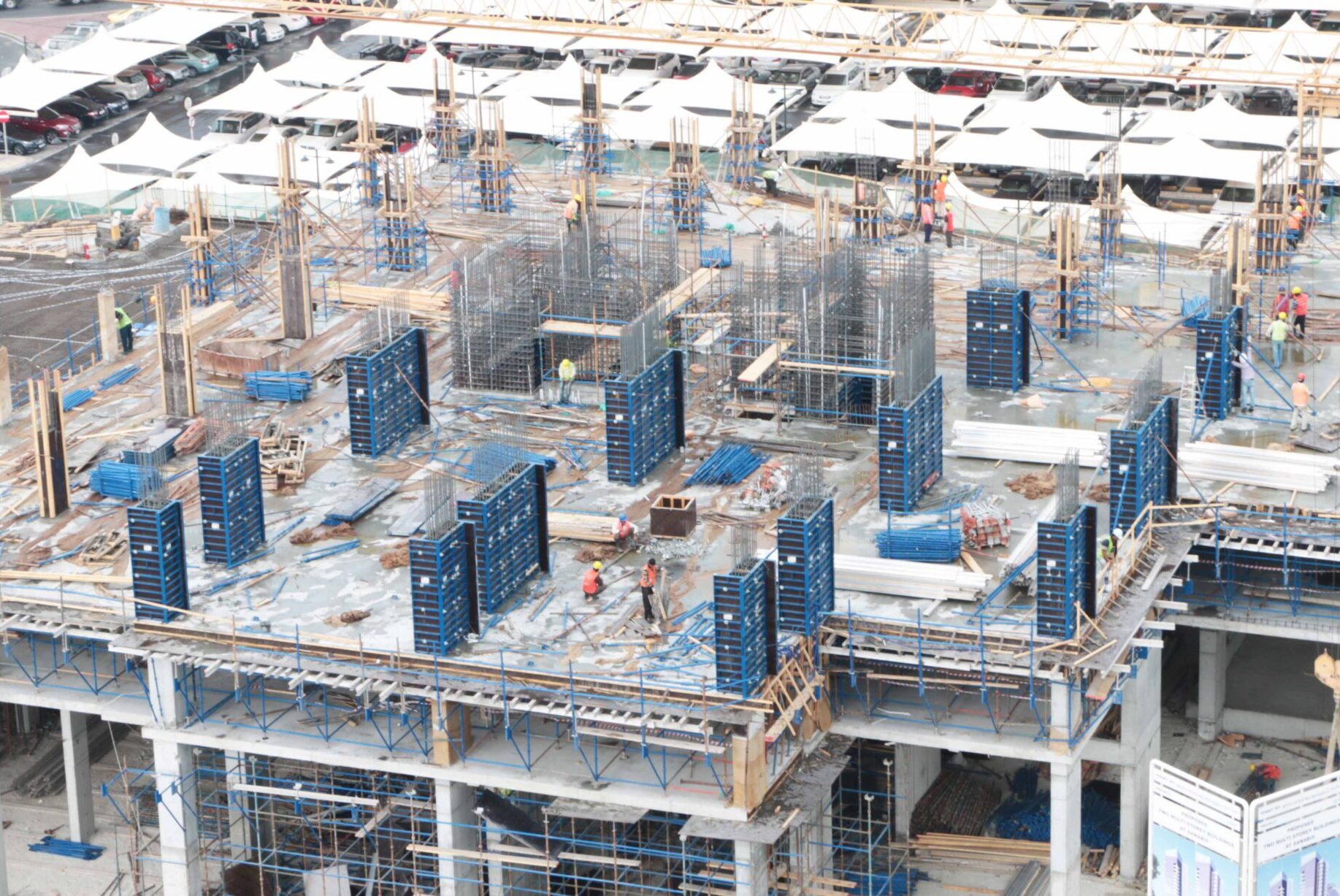

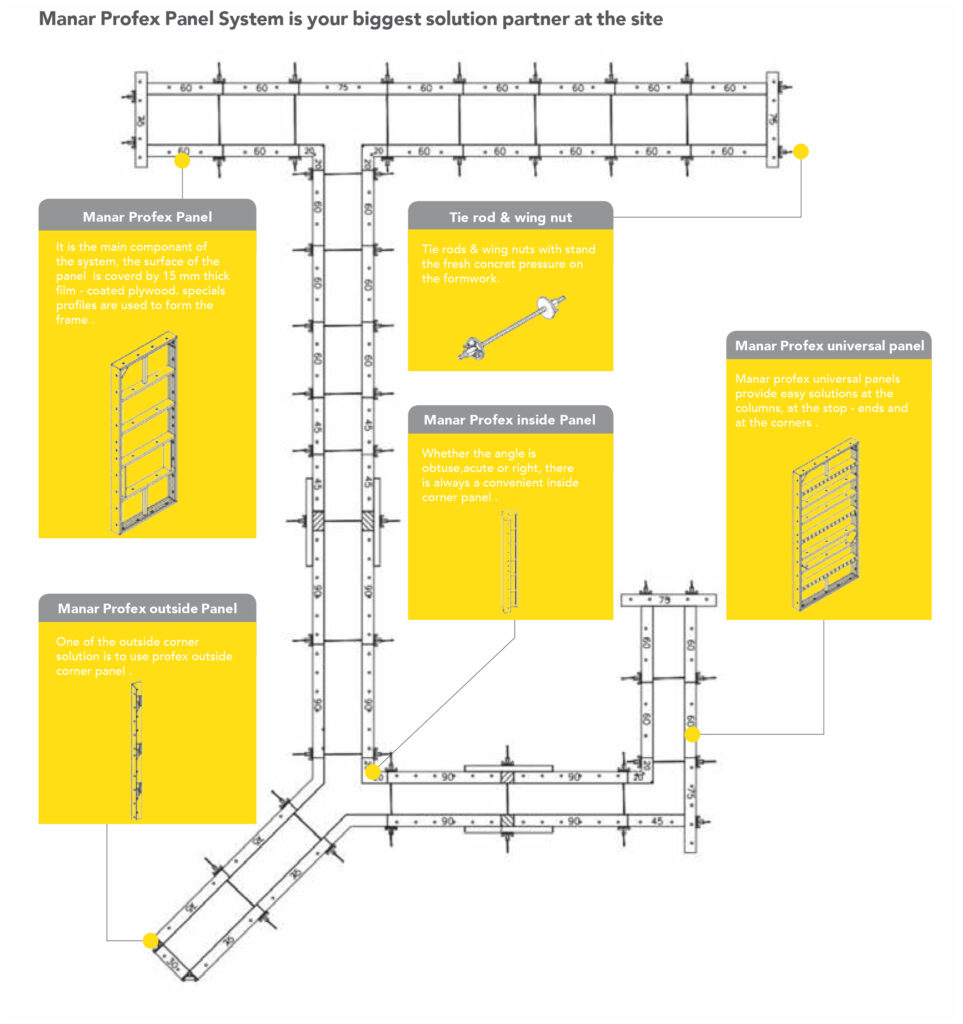

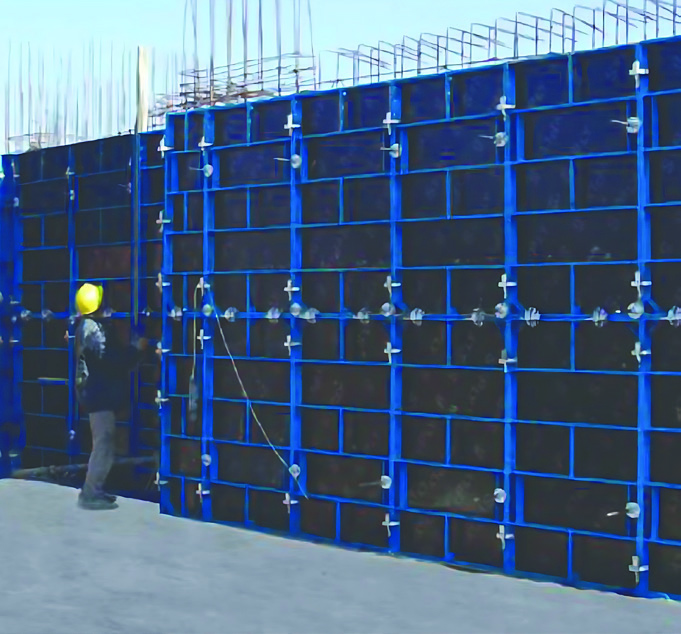

MAO Profex Panel System is an ideal panel formwork system for all sites. Either the walls and columns are changing continuously or they are always the same throughout the project it isn’t important for MAO Profex Panel System. MAO Profex Panel System solves every type of project very successfully . All components are designed to be handled by one or two persons. If there is no crane at the side panels can be easily carried by hand. If there is an available crane then some panels are assembled to a big panel and are transferred by crane together in one go.

MAO Profex Profile
MAO profex profiles which form the frame increase the strength of the panel & ensure along service life.

System features
All components are light enough to be carried by hand . System is designed to with stand against fresh concrete pressure of 60 kN/m2.
All components are ready to use upon arrival at the site . Special profiles which from the fram,increase the strength of the panel and ensure a long service life . By means of special shaped profiles and one blow clamps,panel connections are very easy & quick. Panel connection are not dependent on the holes on the frame profiles. The frame surrounds the plywood and protects plywood’s edges from unwanted injuries. A few clamps are enough for a rigid connection . This ensures to shorten the assembly and disassembly period . The frame prevents the water to get into the plywood through its sides.

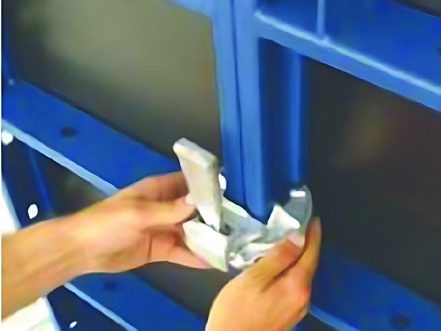

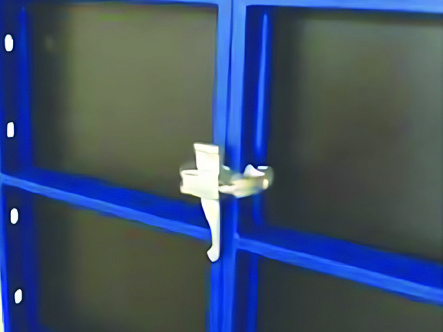

Profex clamps connect the panels easily. Only one blow is enough to make a rigid connection. Clamps are not dependent on the holes of the frame profile. Due to special shape of the frame profiles the clamps connect two panels together at any point around the frame. Two panels are fixed with one hammer blow. Clamps are not dependent on the holes of the frame profiles. A few clamps are enough for a rigid connection . MAO Profex Clamps connect the panels easily . only one blow is enough to make a rigid connection. Clamps are not dependent on the holes of the fram profile . Due to special shape of the frame profiles the clamps connect two panels together at any point around the frame.

Profex different size

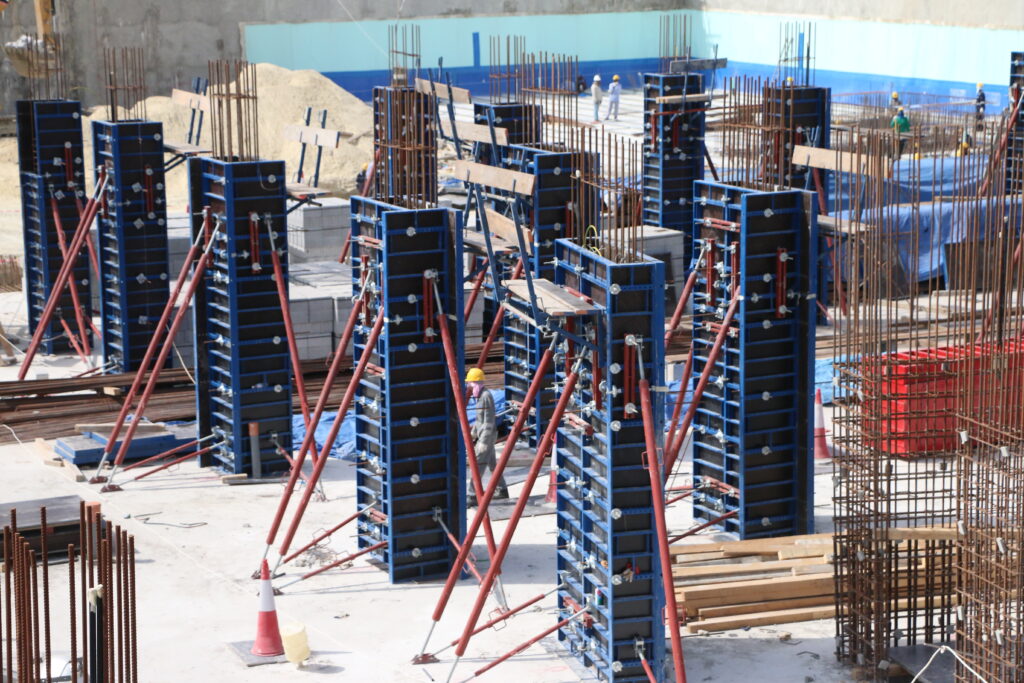

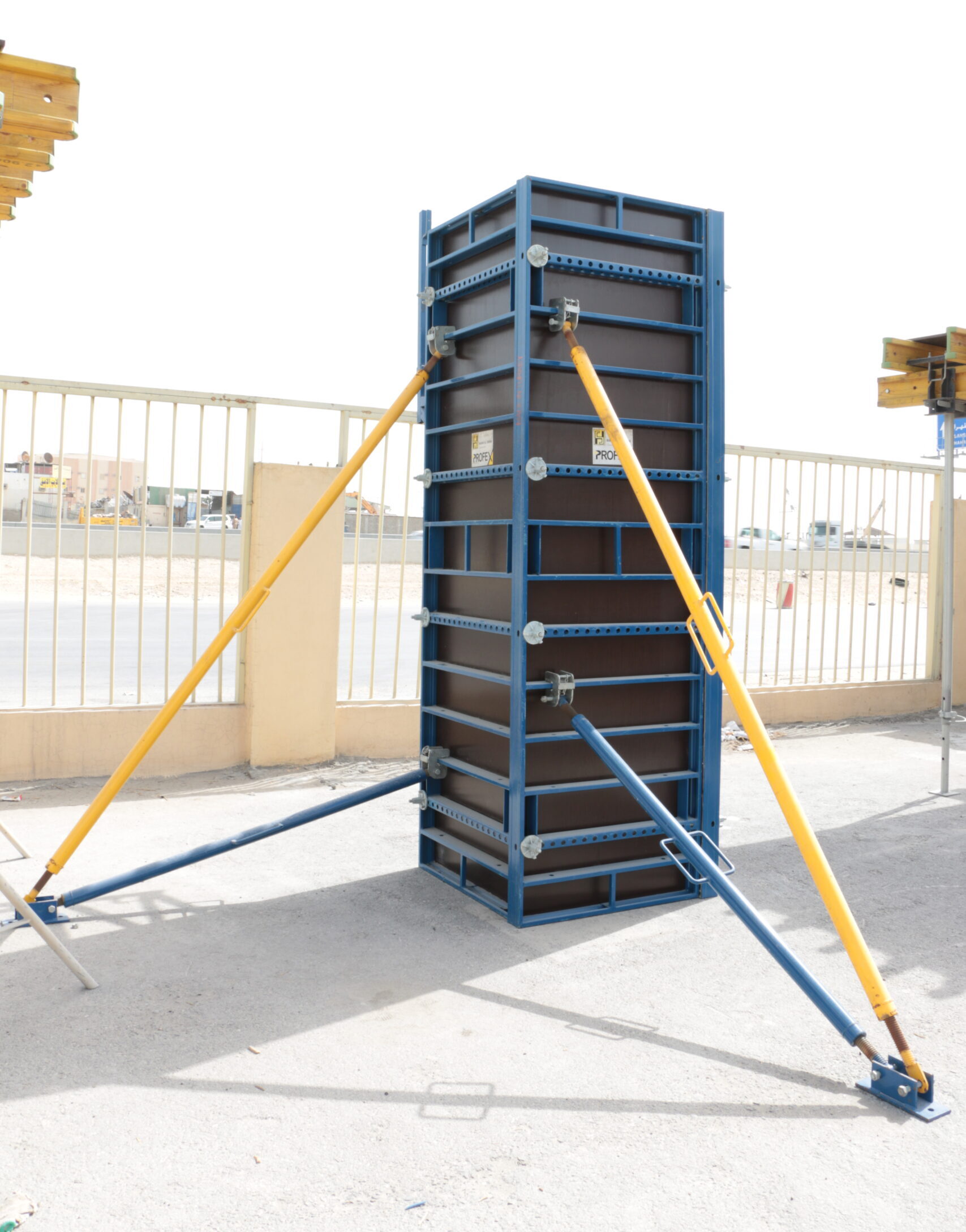

Same sizes panels can be used for different size column by means of panex universal panels. In this way same column formwork can be used for a whole Project in which different column sizes exist . This provides flexible use to the system.
