H20 Beam
An H20 Beam is a lightweight, high-strength wooden formwork beam made with solid wood flanges and a laminated plywood web, used to create temporary molds for concrete in construction. It features a double T-section design, end caps for protection, and is designed for high load capacity, dimensional stability, and easy handling in various formwork systems like walls, slabs, and tables.

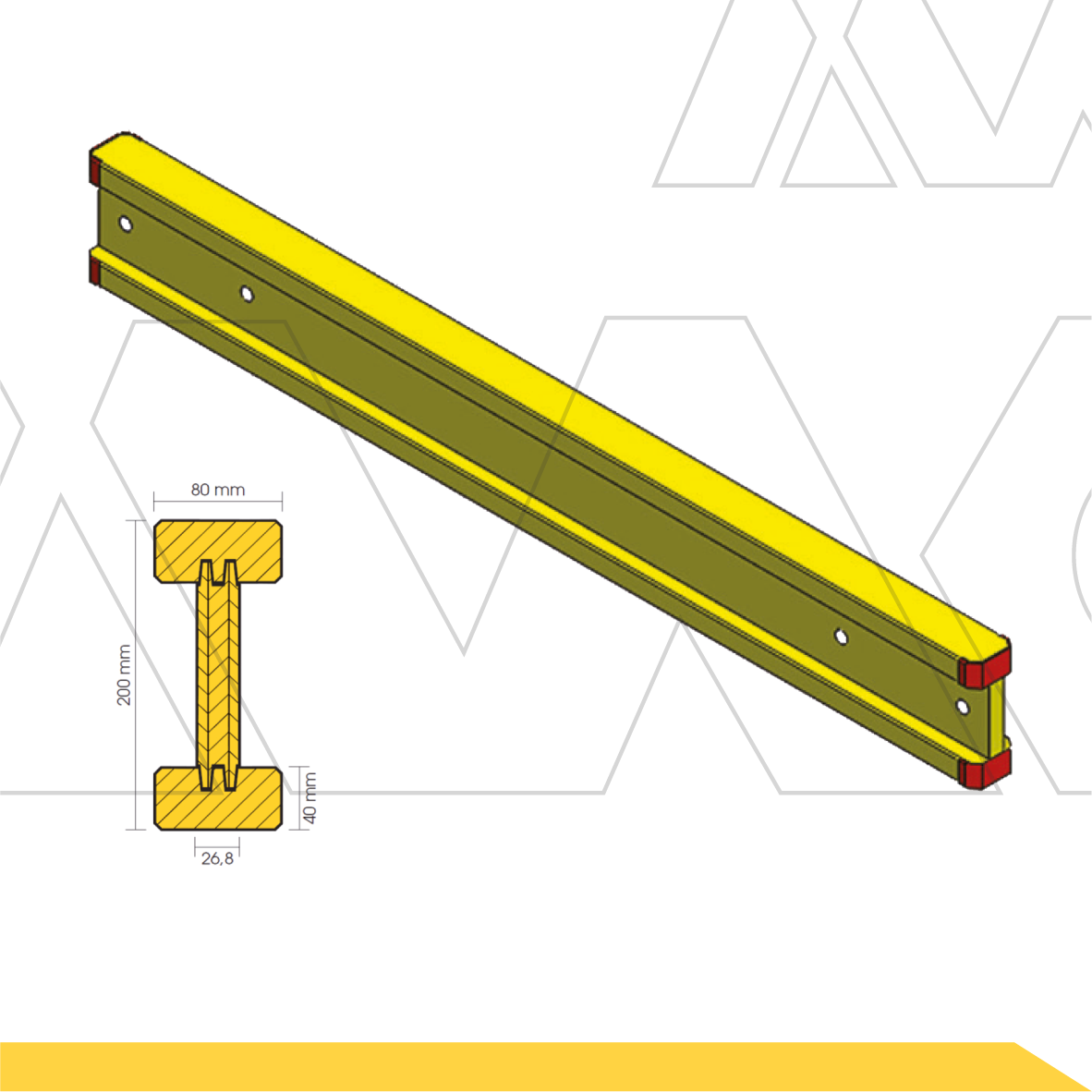

H20 Beam
• The H20 Formwrok Timber Beam is a solid l-beam used for concrete formwork construction.
• The height of beam is 200mm and available in different standard
lengths.
• The webs made of 3 ply laminated solid wood panels ensuring use in all climate zone.
• The chords are made of superior quality smoothly surfaced and slightly chamfered.
• H20 Beams are used as primary and secondary beams for M-Cuplock FalseWork applications.
TECHNICAL SPECIFICATIONS
1. Permissible bending moment (M) = 0.50 t.m
2. Permissible shear force (Q) = 1.10 t
3. Section modulus (z)= 461 cm3
4. Geometrical moment on inertia (l)= 4613 cm4
Aluminum Beams
MAO Aluminum Beams combine the benefits of strength, lightness and easy handling with consistency ,versatility and exceptional durabilty . Manar Aluminum Beams manufactured from high grade alloy ( ALLOY 6082 ) . Available in two standard section .

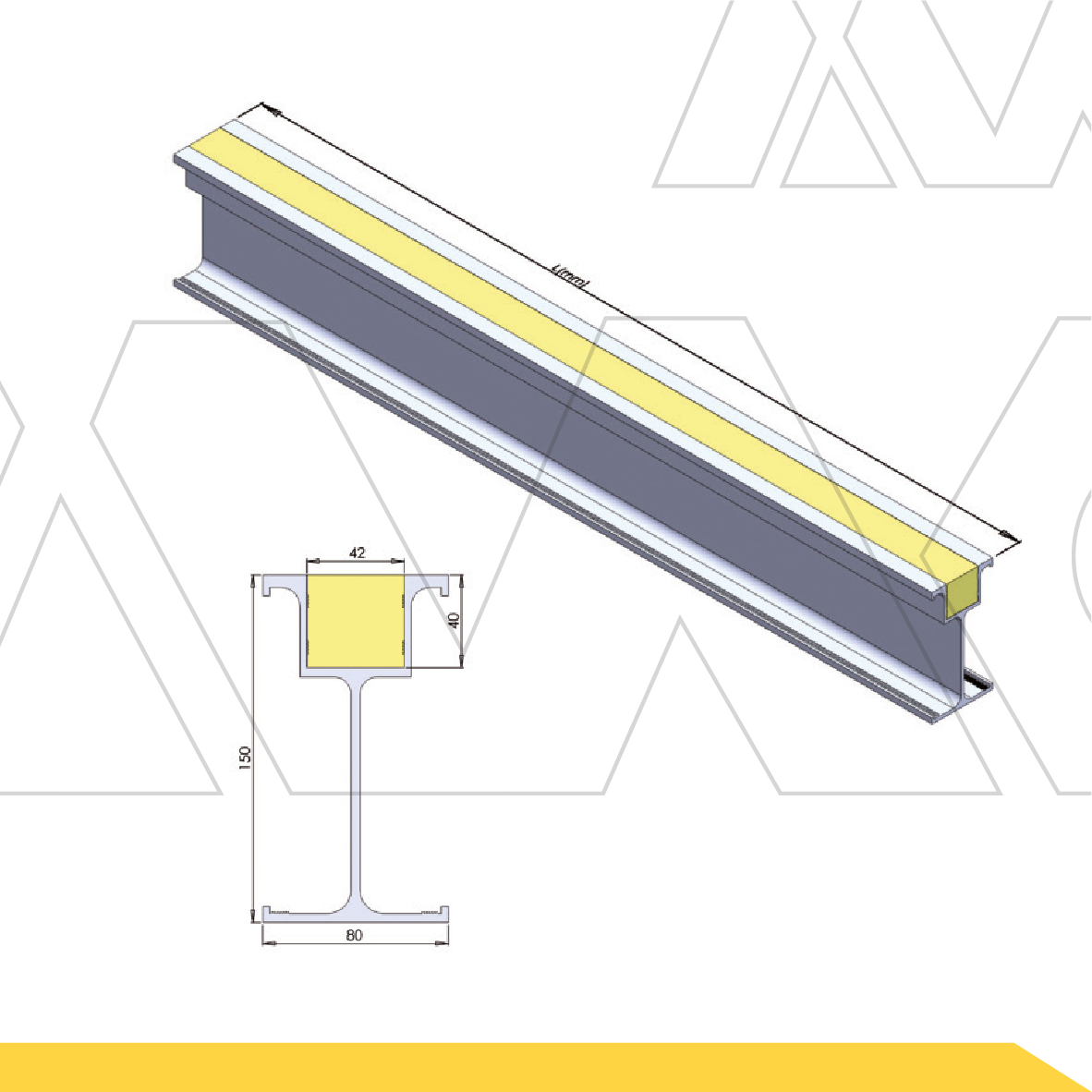

Single web light
TECHNICAL SPECIFICATIONS
1. Permissible bending moment (M) = 0.77 (t.m)
2. Permissible shear force (T) = 4.00 t
3. Section modulus (Z) = 51.70 cm3
4. Geometrical moment on inertia (L) = 389.70 cm4

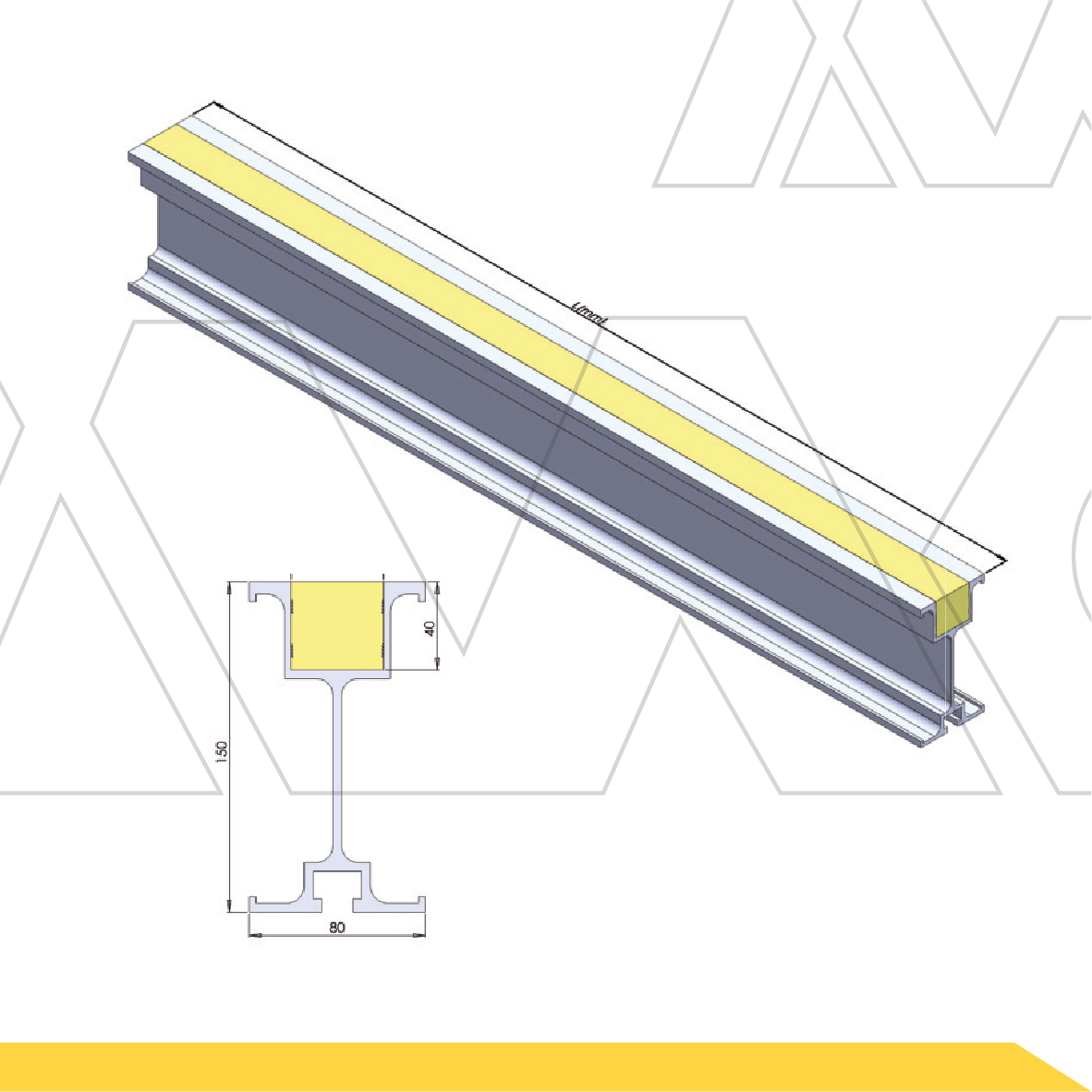

Single web Heavy
TECHNICAL SPECIFICATIONS
1. Permissible bending moment (M) = 0.86 (t.m)
2. Permissible shear force (T) = 4.70 t
3. Section modulus (Z) = 57.89 cm3
4. Geometrical moment on inertia (L) = 469.66 cm4

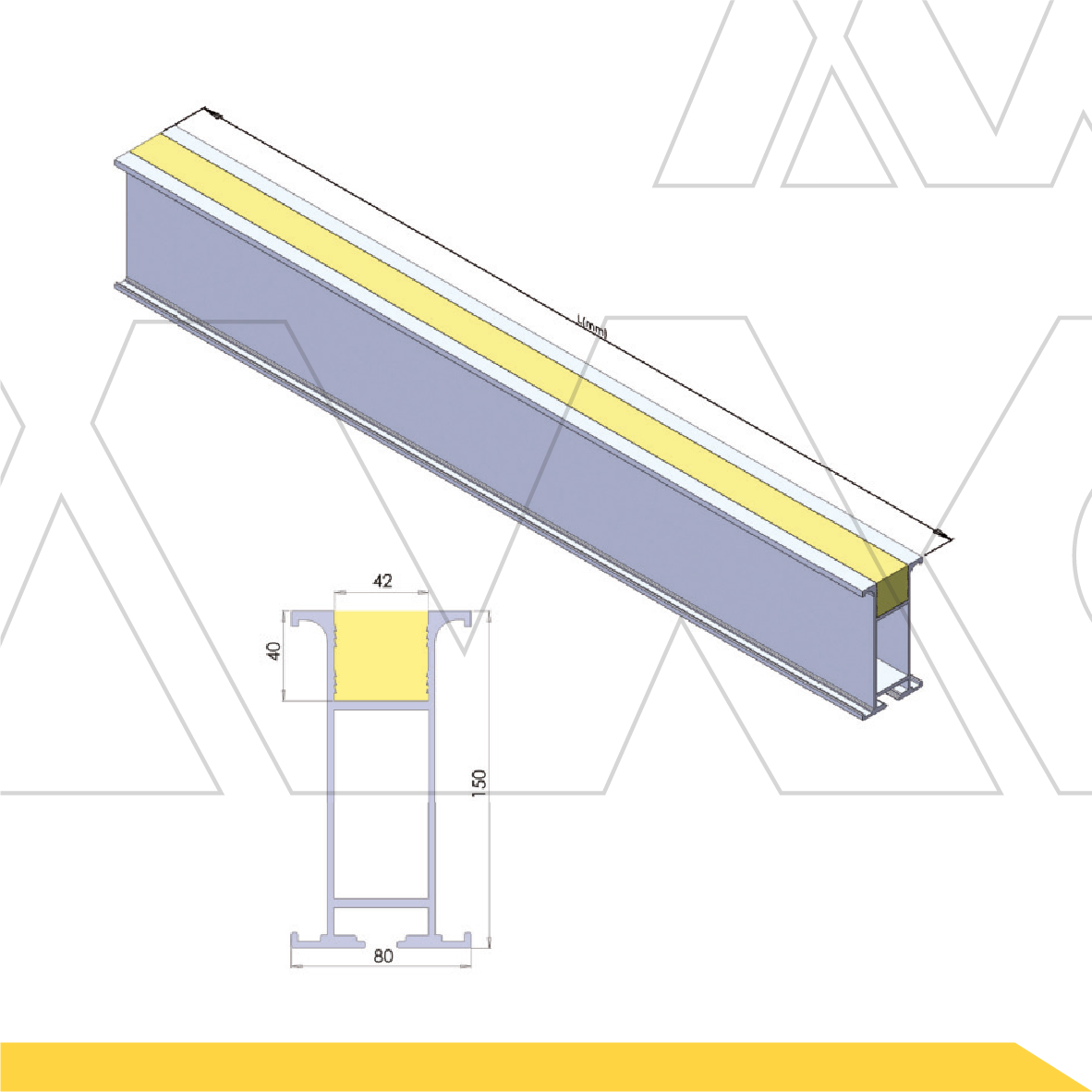

Double web
TECHNICAL SPECIFICATIONS
1. Permissible bending moment (M) = 0.98 (t.m)
2. Permissible shear force (T) = 8.00 t
3. Section modulus (Z) = 65.82 cm3
4. Geometrical moment on inertia (L) = 460.7 cm4
